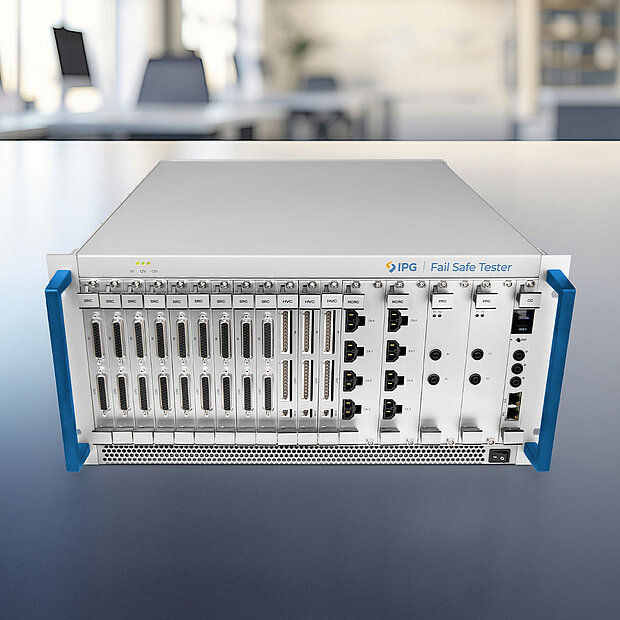

Fail Safe Tester
Simulation of electrical faults for reliable system validation

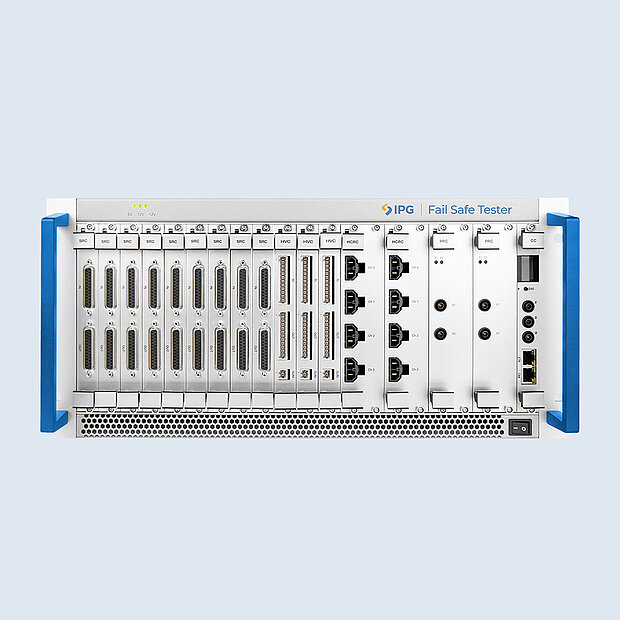

Fail Safe Tester simulates electrical faults such as cable breaks, short circuits, or loss of contact in a targeted and reliable manner. It allows you to test the impact of such faults on your ECUs or systems in a controlled way and to precisely analyze the behavior under realistic fault conditions.
What is Fail Safe Tester?
- Modular device to simulate typical electrical faults such as cable break, short circuit, mixed up signal lines, or loose contact
- Operates between the HIL system and one or multiple ECUs for flexible and targeted manipulation of signal lines to peripherals
- Realistic reproduction of fault conditions and systematic tests of ECU behavior
- Control via common interfaces or directly in CarMaker or RealtimeMaker
Who benefits from Fail Safe Tester?

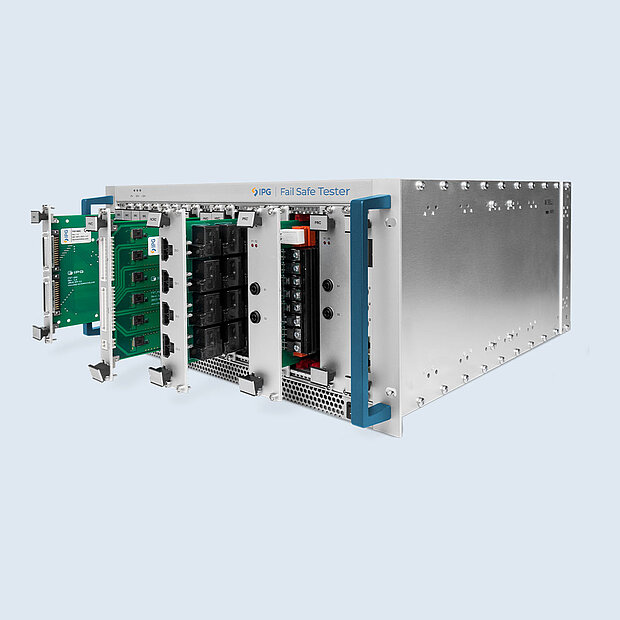

- OEMs, suppliers, test engineers, and validation departments that want to protect their systems against electrical faults
- Development teams from the application areas ADAS, autonomous driving, vehicle dynamics, or powertrain benefit from realistic fault simulation for complex systems

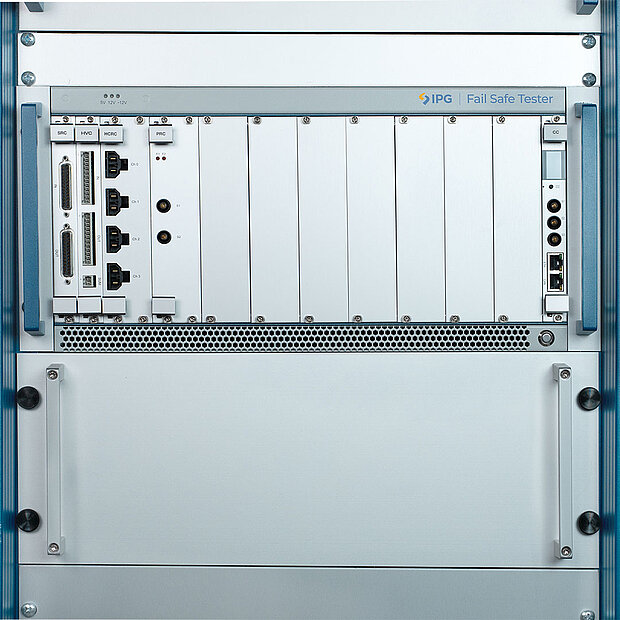

How can Fail Safe Tester be used?
- Fail Safe Tester can simulate the following electrical faults:
- Interrupted signal lines (cable breaks)
- Mixed up signal lines
- Short circuits with other electric lines
- Increased contact resistance (e.g. because of corrosion)
- Leakage current (e.g. due to humidity)
- Loss of contact (loose contact)
- Flexible configuration and connection of different signal paths using relay and an internal switching logic
- Modular plug-in cards for power, tension, and switching applications expand the test functionality and adapt to specific test requirements
Modular plug-in cards
Functions:

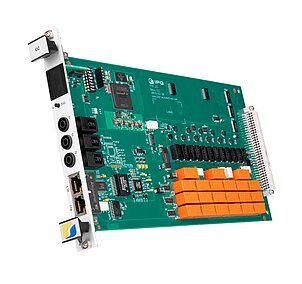

- Control of the overall system by executing commands received via CAN or serial interface RS232/COM.
- Control of the connections of the interconnection lines 1 and 4, 2 and 5, 3 and 6.
- Measurement of up to 3 signals (S1 .. S3).
- Self-diagnosis, digital DIAG to test relay, analog DIAG to test resistance values.
Functions:

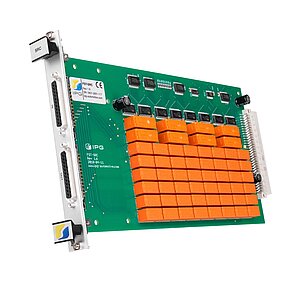

Every channel of the Standard Relay Card is equipped to
- connect/disconnect the input and output of a channel
- interconnect multiple inputs and outputs located on the same card or on different cards
- connect any input to any output located on the same card or on different cards
Functions:

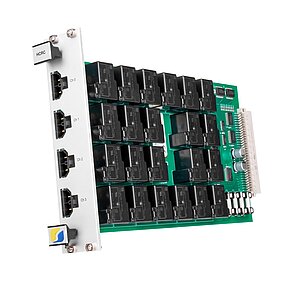

Every channel of the High Current Relay Card is equipped to
- connect/disconnect the input and output of a channel.
- interconnect multiple inputs and outputs located on the same card or on different cards.
- connect any input to any output located on the same card or on different cards.
Functions:

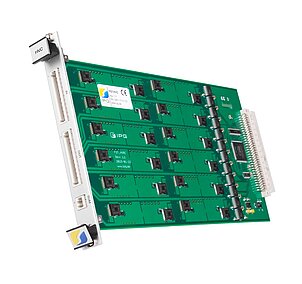

Every channel of the High Voltage Card is equipped to
- connect/disconnect the input and output of a channel.
- connect multiple inputs and outputs located on the same card.
- connect every output with the „SUM“ point.
Functions:

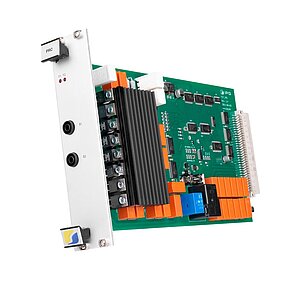

The Programmable Resistor Card is equipped to
- insert any resistance between the input and the output of a channel.
- insert any resistance between different signal lines of a channel.
- connect external loads via the banana jacks.
