Xpack Real-time System
Flexible real-time hardware with multi-IO connection
Dynamic development processes in the automotive industry lead to a continuous increase of requirements for hardware platforms. The modular real-time system for HIL applications tests ECUs, electric components, and complex vehicle systems virtually and with high precision. Xpack Real-time System is based on the industry standard CompactPCI Serial and allows you to freely assemble different single-board computers, modules, carrier boards, and housings for individual configurations. The platform offers a high computing capacity to parallelize models, short IO access times, and broadband data interfaces.

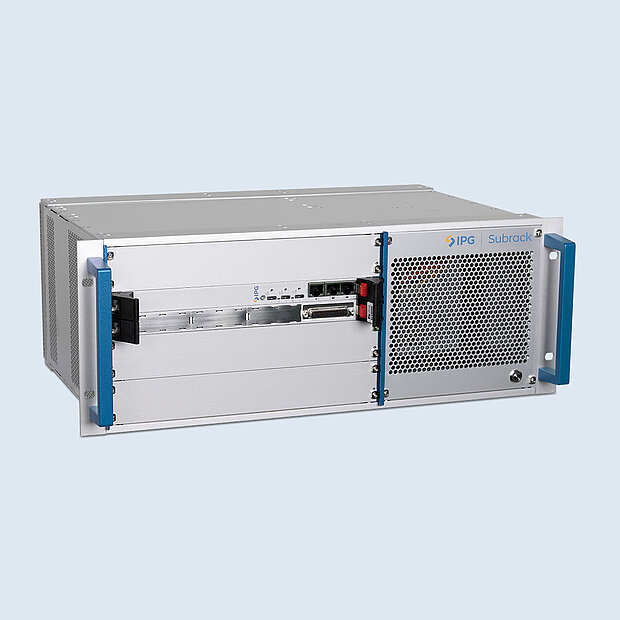

What is Xpack Real-time System?
- Enhanced version of the former Xpack4 system
- Modular hardware platform for real-time simulations developed for HIL use cases in all key application areas
- Combines a flexible system architecture with proven components from the automotive industry to test complex vehicle systems

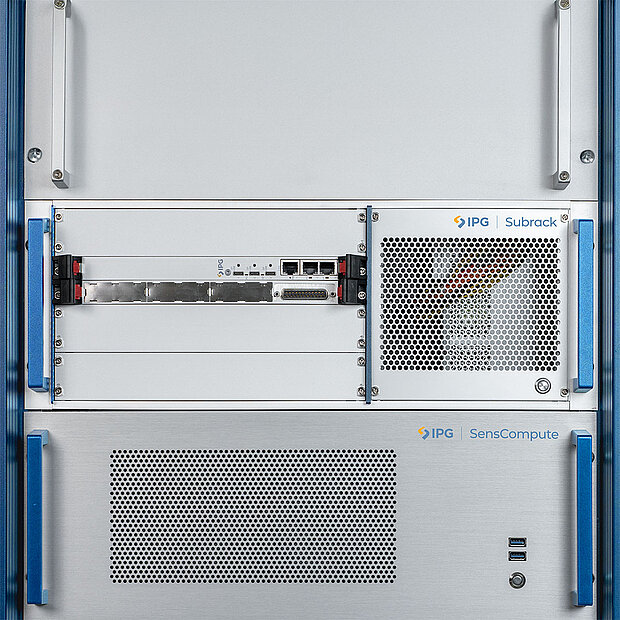

Why does Xpack Real-time System stand out?
- Ideal in combination with CarMaker for seamless and efficient model validation
- The system’s multicore architecture supports parallelization of simulation applications in CarMaker
- It is equipped with adaptable IO modules for precise system validations in real time

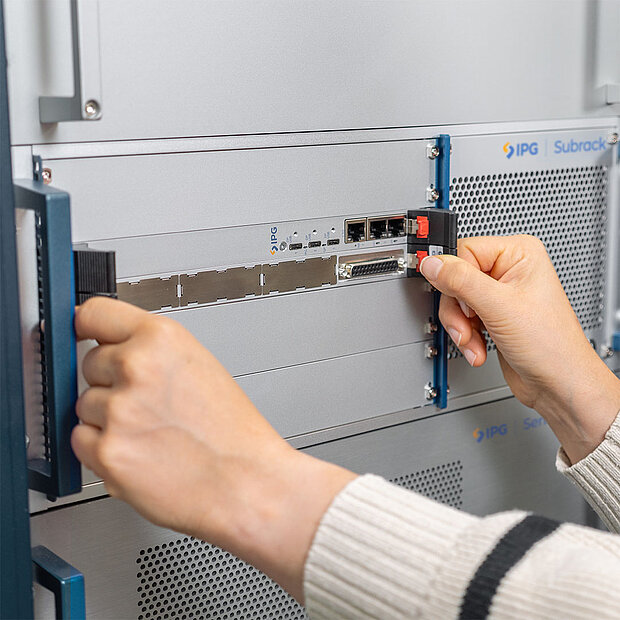

Who benefits from Xpack Real-time System?
- OEMs, suppliers, and developers that want to test complex vehicle systems efficiently and reliably
- Development departments working in the field of ADAS applications and software for automated driving
- Teams that work on propulsion systems or vehicle dynamics controls and require reproducible, scalable, and real-time capable test environments

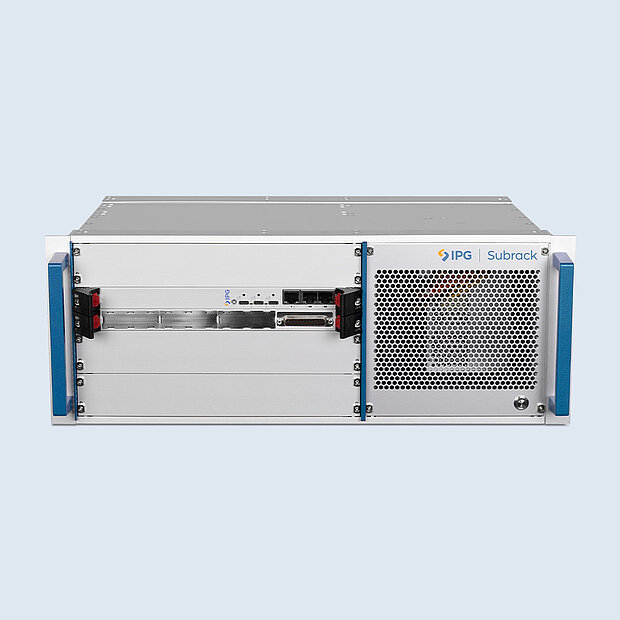

How can Xpack Real-time System be used?
- Stationary or mobile use that can be adapted to specific test requirements
- Real-time platform with different possible configurations to connect real ECUs to virtual simulation environments
- For open-loop and closed-loop tests in combination with the CarMaker product family as well as with the real-time control RealtimeMaker
Customized equipment
Configure Xpack Real-time System together with one of our experts according to your requirements and application areas.
ISC-1: Internal Side Card M27: 16 binary outputs, low side switch M28: 16 binary outputs, high side switch M31: 16 binary inputs, load on ground M32: 16 binary inputs, load on supply voltage M43: Relay outputs M66: 32 binary in/outputs M77N: Quad RS232/RS422/RS485 UART M81: 16 binary outputs M400: Active wheelspeed generator M401-01: Frequency generator and meter M402: Engine signal generator M403: Engine signal meter M404: Waveform generator | M405: LIN M406: PSI5 interface M407: SPI interface M408: Universal digital und PWM input M409: Power supply control M410: CAN/CANFD M411: High Speed Power Monitor und Data-Logger M412: Park sensor simulation M413: (De)Multiplexer/Switcher M414: SENT Module mit SPC Support M415: Motor Encoder Interface Module M416: DSI3 Interface M417: Analog Outputs M418: Analog Inputs M419: Relay outputs M440: Programmable resistor M441: Universal digital and PWM output |
Housings RoadBox: Compact chassis, 7 slots for 3U cPCI boards, height 4U Subrack 5: 19" subrack, 5 slots for 6U cPCI boards, height 3U Subrack 8: 19" subrack, 8 slots for 6U cPCI boards, height 4U Subrack 14: 19" subrack, 14 slots for 6U cPCI boards, height 8U | Equipment |
