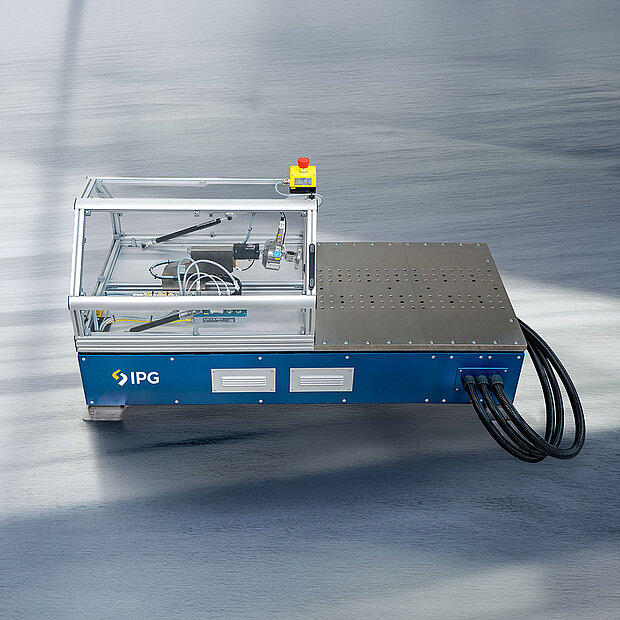

Steering-in-the-Loop Lite
Compact test system to test and validate complete steering systems
Steering-in-the-Loop Lite is a compact solution that enables testing of complete steering systems including the steering wheel, steering column and steering rack along with the EPS ECU. This test system is specially designed for functional and system integration tests to validate the vehicle’s ADAS and AV functions along with the real steering system. Furthermore, it can be extended to test steer-by-wire systems without the need for a steering wheel actuator.

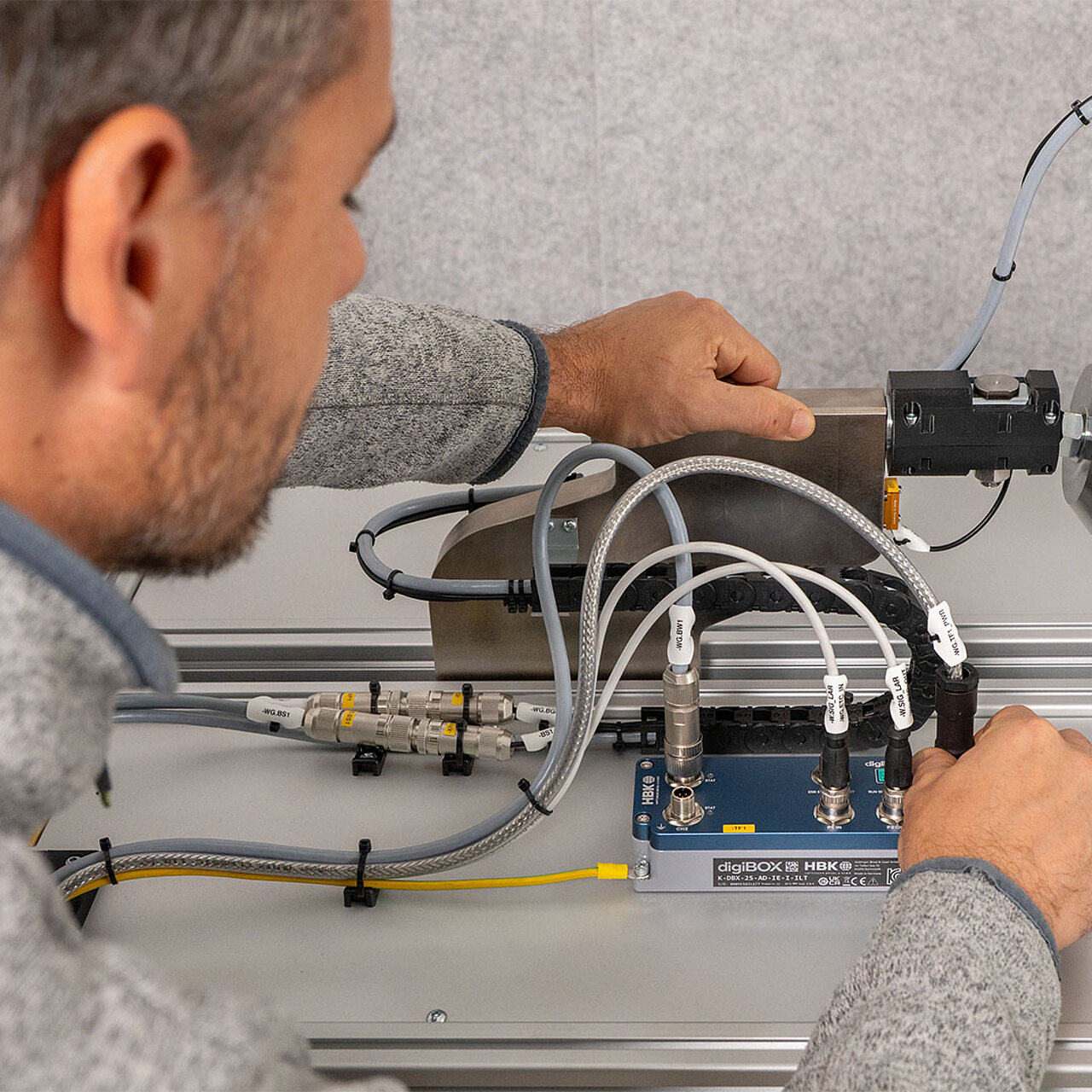

Who benefits from
Steering-in-the-Loop Lite?
- OEMs can validate the overall system control architectures
- Steering system developers can test and calibrate the EPS ECU
- Test engineers can validate system responses with DIL mode

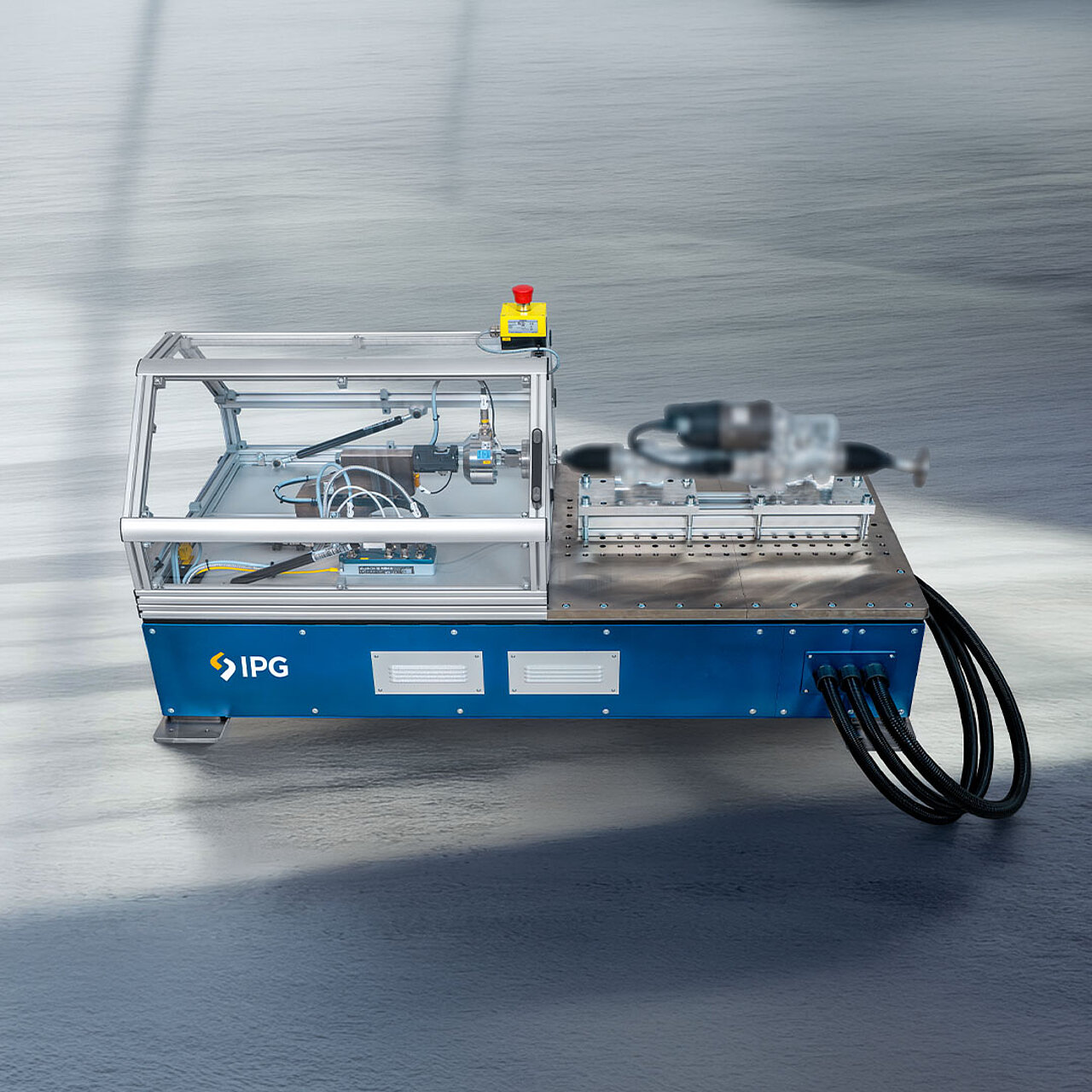

What is Steering-in-the-Loop Lite?
- Test system for the validation of complete steering systems in open- and closed-loop maneuvers
- Validation of ADAS and AV functions along with the real steering system on an integration platform
- Enables subjective evaluation of system responses
- Supports fail-safe tests, functional tests and calibration of the EPS ECU
- Driver-in-the-Loop extension available

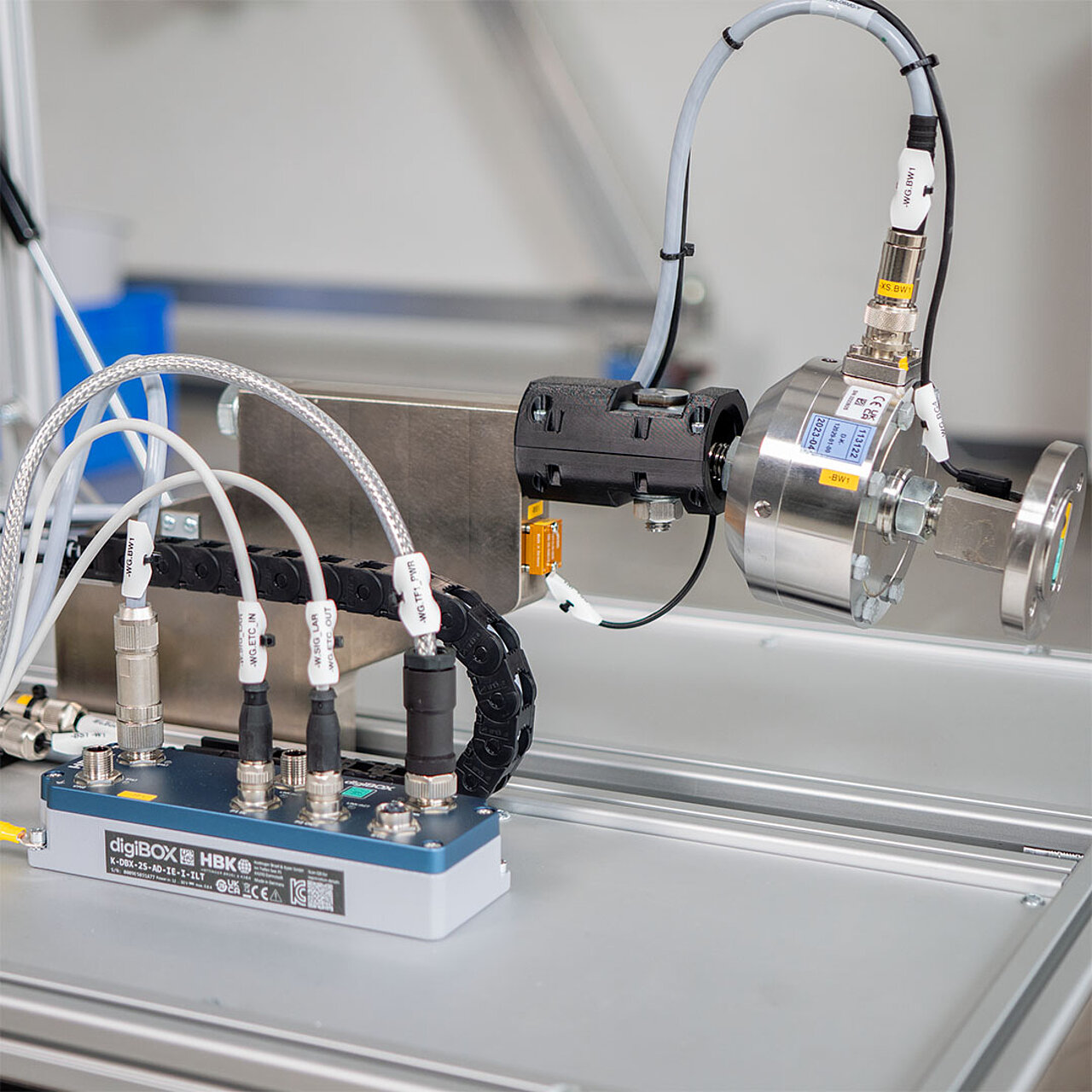

What does Steering-in-the-Loop Lite offer?
- Force- and position-controlled single rack actuator for realistic transmission of rack force from virtual road to real steering rack
- Compact test system to fit into any lab
- Test bench software interface for CarMaker
- Input to actuator from virtual vehicle environment or real-world measurement data
- Validate all types of steering systems, from conventional to modern steer-by-wire systems
How can Steering-in-the-Loop Lite be used?
- Testing of real steering systems including steering wheel, steering column, steering rack and EPS ECU in open- and closed-loop maneuvers
- With steering input from real driver
- For fail-safe tests and function tests of the EPS ECU keeping the real DUT in the loop with the virtual vehicle environment
- Offers a modular and flexible system design that can be extended with additional steering rack and steering wheel actuators
