CarMaker
The simulation solution for virtual test driving
Our CarMaker simulation solution is specially designed for the development and end-to-end testing of passenger cars and light commercial vehicles across all development stages (MIL, SIL, HIL and VIL). The open integration and testing platform enables virtual test scenarios for Autonomous Vehicles, ADAS, Powertrain, and Vehicle Dynamics. The high-resolution 3D visualization tool ensures photorealistic quality, and existing tool environments can be easily integrated through a wide range of supported standards and interfaces.
Who benefits from CarMaker?
- OEMs, suppliers, and other organizations aiming to virtualize their development processes to reduce costs and accelerate development timelines
- Developing engineers who
- perform virtual tests of critical scenarios to ensure extensive test coverage
- conduct safety validations to guarantee reliable and safe systems
- test system integration and interoperability within the vehicle’s system networks
- develop new vehicle components or systems and want to test, verify and validate them
- optimize system functions, such as those of damper systems for chassis or steering systems
What is CarMaker?
- CarMaker is a simulation solution for the development of passenger cars and light commercial vehicles
- CarMaker uses virtual test drives specifically for the end-to-end development, calibration, testing, and validation of components or entire systems in realistic scenarios
- CarMaker can be used across all development stages (MIL, SIL, HIL and VIL), providing reproducible and comparable test environments at each stage
- CarMaker is an open integration platform for testing and development that allows you to expand your simulation capabilities through its many interfaces
How CarMaker can support you
- Automated test procedures in MIL, SIL, HIL, and VIL, with the option to run various test catalogs in parallel
- Extensive portfolio of ideal, phenomenological, and physical sensor models for verifying and validating ADAS and autonomous driving systems
- Photorealistic test conditions, including weather effects, for testing ADAS-related sensors
- Use of adaptive driver models combined with complex and detailed road and environmental models, including road users such as pedestrians, to test functions in safety-critical situations
- Setup and use of detailed, real-time capable virtual prototypes (digital twins) for hybrid, electric, and conventional combustion engine vehicles
- Vehicle dynamics of commercial vehicles, e.g. through coupling trucks with multiple trailers
- Various options for data analysis and assessment
Use Cases
Efficient regression tests for stable software updates
Regression tests prevent situations where software updates impair existing functionality. Automated processes enable tests to be carried out swiftly and reliably, providing the system with prompt and reliable feedback on the quality and stability of the software. This enables efficient and continuous further development.
Validating vehicle functions in the cloud using scalable CI/CT/CD processes
The share of software in vehicles keeps growing – and the development process needs to adjust to this new reality. New versions must be tested continuously. A CI/CT/CD environment enables the automated integration, testing and distribution of software, while test cases are being generated based on requirements, and implemented in cloud simulations. Functions can be validated quickly, which significantly increases test coverage.
Real-time capable physical tire models for realistic HIL tests in ECU development
Hardware-in-the-loop (HIL) is an integral part of control unit development. Traditionally, this has been based on simple, empirical tire models. While these provide fast calculation, they are unable to deal with exceptional driving situations. With a real-time capable physical tire model, complex scenarios such as ABS braking on uneven surfaces or sudden loss of tire pressure can be simulated, and control units can be tested under more realistic conditions.

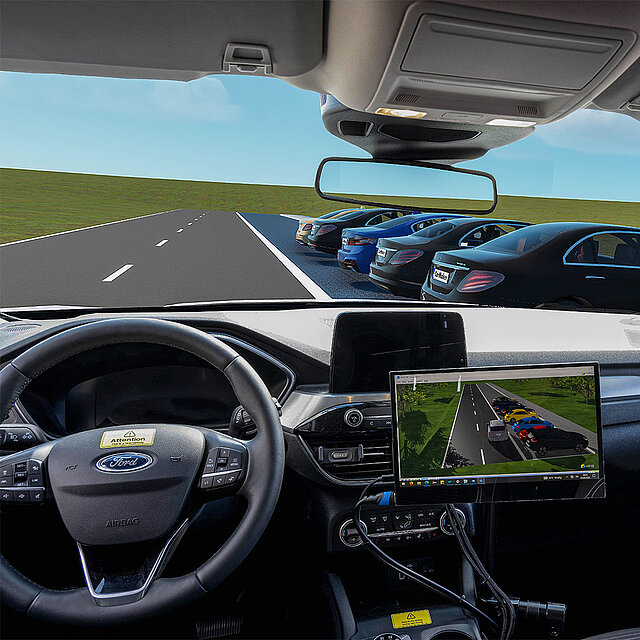

Vehicle-in-the-loop and CarMaker for the validation of driver assistance systems according to regulatory requirements
Before being used in actual vehicles, driver assistance systems must be tested in accordance with specific regulations. The vehicle-in-the-loop method enables the creation of a report needed for the approval of a lane departure warning system under the UN/ECE regulation. For this purpose, CarMaker creates a reliable simulation toolchain to run the simulation-based validation of maneuver variants across the entire operational range.
Developing a multi-layer laser scanner for the prevention of accidents
Approximately 55% of accidents involving pedestrians occur when a vehicle is backing up. To reduce such accidents and to improve safety when backing up forklifts, industrial truck manufacturer Linde uses a multi-layer laser scanner (lidar) to monitor the surroundings. The functionality of this scanner in various scenarios (based on ISO 22737) was simulated and tested in a virtual test drive using CarMaker, generating reproducible results that will help prevent dangerous situations and develop safer forklifts.
